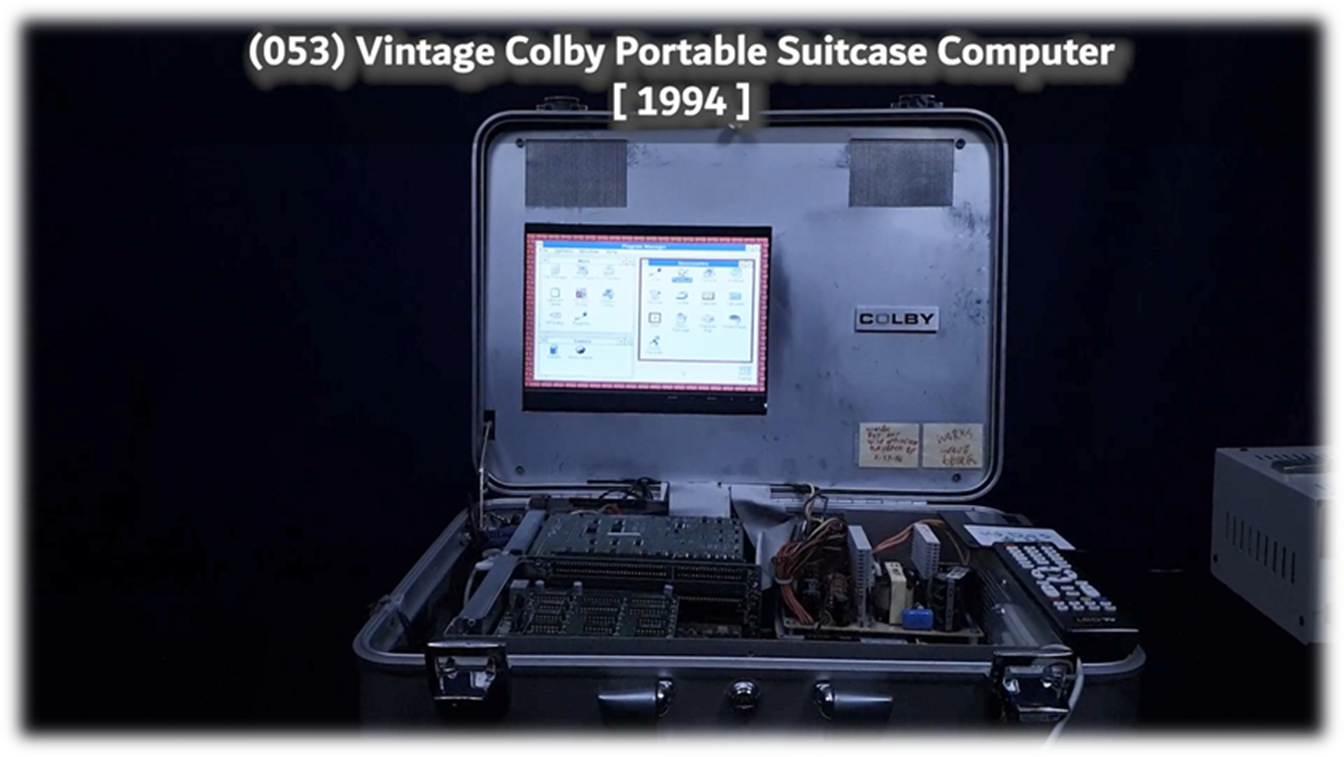

(053) Vintage Colby Portable Briefcase Computer
[ 1994 ]



Specification:
    A Unique One of A kind Hand Made Machine from The Heritage of the Legened “Chuck Cloby”, April 1957-November 2020 (63 Years)

CPU

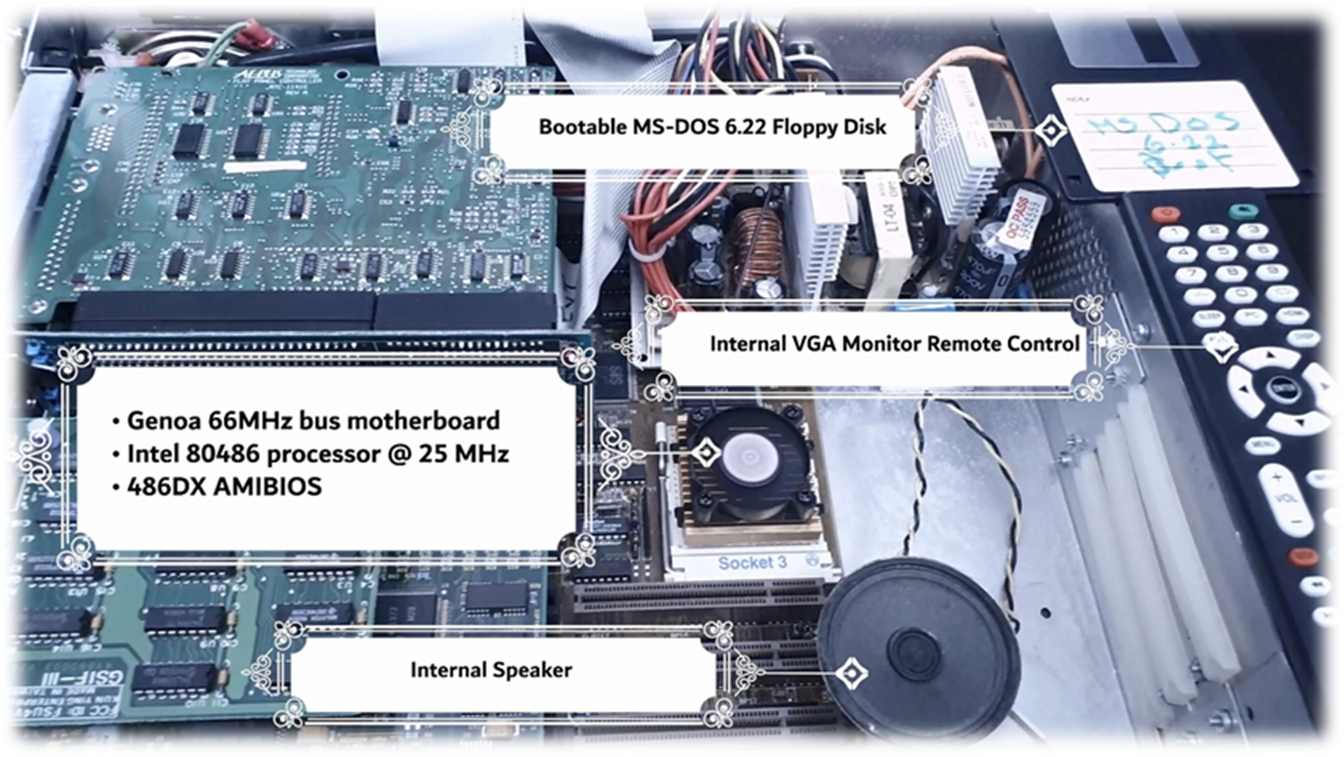

·       Genoa 66MHz bus motherboard

·       Intel 80486 processor @ 25 MHz

·       486DX AMIBIOS

RAM

8 MB

STORAGE

256 MB CF-based IDE HDD
540 MB Maxtor IDE HDD

DRIVES

·       Internal 3.5'' floppy (1.44 MB)

DISPLAY

·       Built-in color VGA LCD monitor (10")

·       Graphics: 800 x 600

OS

·       MS-DOS 6.2

·       MS Windows 3.1

KEYBOARD

·       External BTC 5100C Compact AT 5-Pin DIN Keyboard

Network

I/O PORTS

·       Serial port

·       VGA port

·       Audio IN/OUT jacks

EXPANSION PERIPHERALS

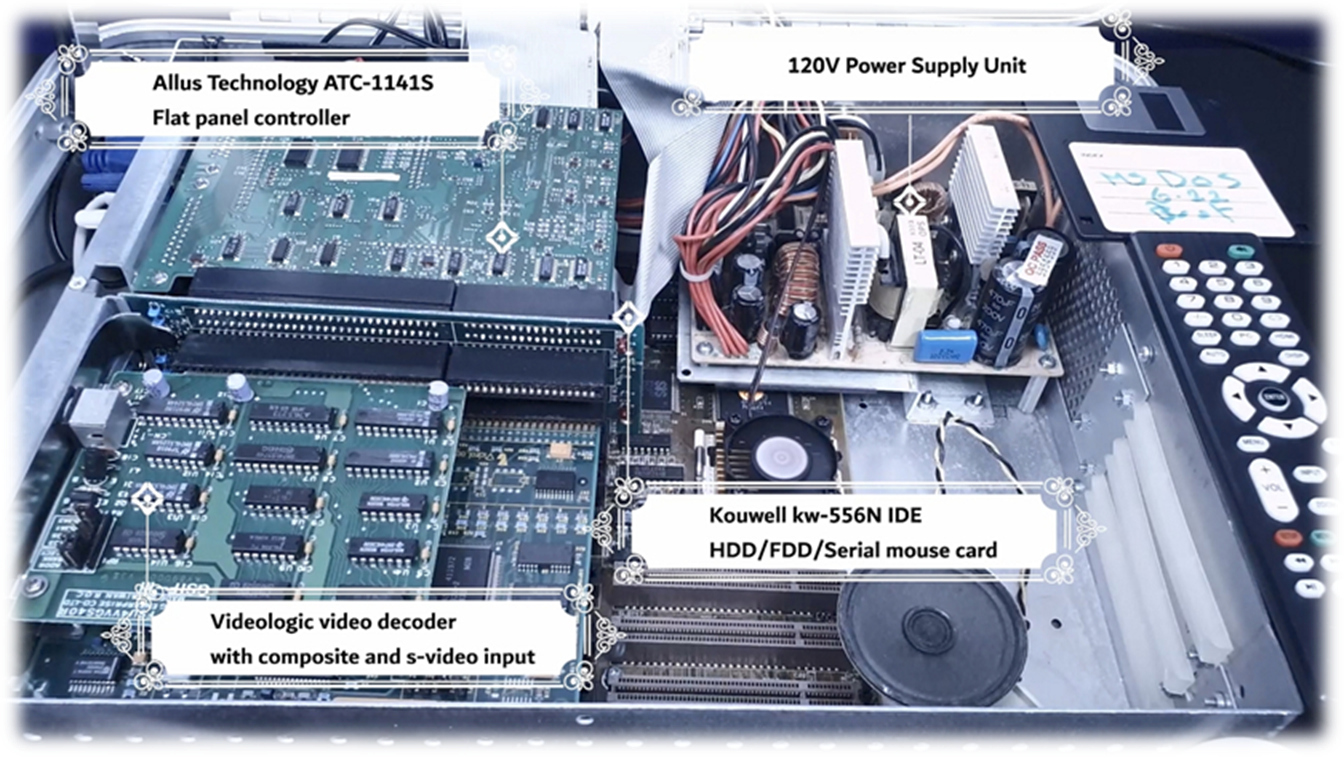

·       Videologic video decoder with composite and s-video input

·       Allus Technology ATC-1141S Flat panel controller

·       Kouwell kw-556N IDE HDD/FDD/Serial mouse card

ACCESSORIES & DOCUMENTS

·       Original “Chuck Colby” The Legend hand writing notes about the system testing

·       Kensington Orbit Trackball 2 Buttons Serial Mouse

·       Monitor remote control

POWER SUPPLY

·       Computer: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS

·       From DOS prompt> CD WIN311 then WIN to run windows 3.1
